Holley EFI Terminator X Max - Gen III 4.8/5.3/6.0 GM Truck Engines
Overview
Take control of your LS engine with Terminator X Max. Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price. Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-917 also has 4L60E or 4L80E Transmission control. Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X MAX has the features and technology you need at a price that won't break the bank.
Features:
- For GM LS 4.8/5.3/6.0 Truck Engines with 24x crank reluctor, Transmission Control, and Multec 2 Injectors
- Real-Time fuel map learn, takes the guess work out of tuning your base fuel table
- High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors
- Injector support chart provided in the instructions (will not control Low Impedance Injectors)
- All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control
- On-Board 1bar MAP sensor is perfect for N/A or Nitrous engine combos; if your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416
- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, activation triggers for nitrous activation, or a trans brake
- 4 Outputs – Ground, PWM - for accessories such as fans, boost control, nitrous control, IAC Kit, and more
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR adjustable through included 3.5” full color touchscreen, base tune easily created via handheld Wizard
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal allow you to identify any Critical engine issues at a glance
- The included 3.5-inch Touchscreen Handheld contains a calibration wizard that allows you to quickly build a base tune for any LS engine. Additionally, the handheld provides internal data-logging and a fully customizable gauge display
- The compact ECU size allows you to mount it virtually anywhere; remember, diagnostic LEDS must face up
- Plug and play compatible with more Holley EFI accessories such as analog style gauges, shift lights, various modules, as well as 5, 6.86 and 12.3-inch Digital Dashes
- Free EFI Tuning Software for complete control of your Terminator X power plant

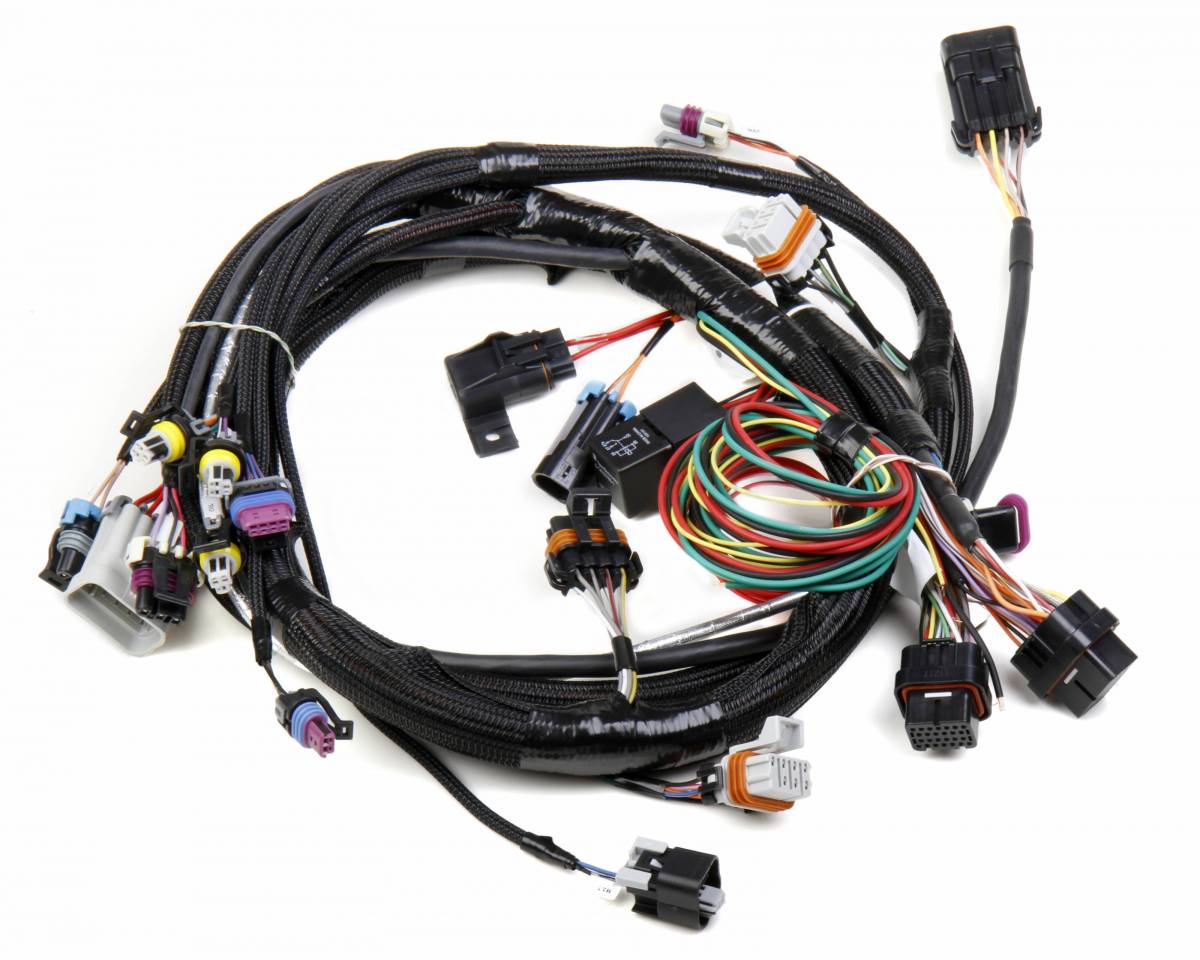

- Includes: 24x LS Engine Main Harness - Multec 2 Injector Harness - 4L60E/4L80E Transmission Control Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - I/O Harness - and assorted vacuum adapters
Overview
Take control of your LS engine with Terminator X Max. Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price. Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-917 also has 4L60E or 4L80E Transmission control. Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X MAX has the features and technology you need at a price that won't break the bank.
Features:
- For GM LS 4.8/5.3/6.0 Truck Engines with 24x crank reluctor, Transmission Control, and Multec 2 Injectors
- Real-Time fuel map learn, takes the guess work out of tuning your base fuel table
- High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors
- Injector support chart provided in the instructions (will not control Low Impedance Injectors)
- All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control
- On-Board 1bar MAP sensor is perfect for N/A or Nitrous engine combos; if your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416
- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, activation triggers for nitrous activation, or a trans brake
- 4 Outputs – Ground, PWM - for accessories such as fans, boost control, nitrous control, IAC Kit, and more
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR adjustable through included 3.5” full color touchscreen, base tune easily created via handheld Wizard
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal allow you to identify any Critical engine issues at a glance
- The included 3.5-inch Touchscreen Handheld contains a calibration wizard that allows you to quickly build a base tune for any LS engine. Additionally, the handheld provides internal data-logging and a fully customizable gauge display
- The compact ECU size allows you to mount it virtually anywhere; remember, diagnostic LEDS must face up
- Plug and play compatible with more Holley EFI accessories such as analog style gauges, shift lights, various modules, as well as 5, 6.86 and 12.3-inch Digital Dashes
- Free EFI Tuning Software for complete control of your Terminator X power plant
- Includes: 24x LS Engine Main Harness - Multec 2 Injector Harness - 4L60E/4L80E Transmission Control Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - I/O Harness - and assorted vacuum adapters
